Fokker FG-2 - Congrès 2017 Vauville

[Johannes]

Entschuldige Vincent das ich mich erst heute melde:

Dein erster F-Schlepp ist super geworden :
Herzlichen Glückwunsch

Weiterhin tolle Flüge mit schönen weichen Landungen

Liebe Grüße Johannes

[DELRIEUPierre]

belle machine
Pierre

[bocorvin]

Danke Johannes, ja ich war ganz erleichtert das der FG gut geflogen hat
et merci Pierre, le FG c'est certainement une machine!

Je continue en Anglais,
To start with, it was an relief and at the same time very rewarding to see th FG flying, she is so translucent, a bit archaic, we enjoyed it very, very much!!

After these first flights it was obvious that the cg was too for forward. Somewhere the fact was in my mind that the main girder was on 30% and I put the cg there. Later I discovered that the girder was on 25%, so I had to take out some lead. I figured out that about 220 grams less was sufficient.
No easy acces, the camera is much smaller than my head!


Two holes in the diacov to take the bolts out


Some wrenching because the lead was glued with epoxy

and with tweezers put the nuts back

Th cg was now at 30%, hopefully that is right, at least I know how to get out more!

There was another thing that worried me, the wiring or rigging of the wing warping. I made a sketch to clarify things

as you can see there are two ( I came up with the names, maybe ther are better names for those wires) "control wires" ataching the servo arm with the upper wings, and one "connecting wire" between the lower wings via a pulley inthe center just under the upper wing. If there is a failure of one of the control wires, the plane is uncontrolable, its only possible to roll to one side and not back. That was a worrying thought! When testing stationary sometimes the quicklink on the servo arm snapped out and after the handlaunches there also unsnapped other quicklinks. I didn't trust the quicklinks 100%. There are other quicklinks with locking plates


(top on the picture) put the locking plates are so tiny, they will get lost, I am afraid. I made a spring of 0.6 steel wire, around a 4mm drill and snipped off pieces of a couple of windings, which you can slide over the quicklink (bottom) It looks reassuring, hopefully they do there job.



I could not use this on the servo arm, because of the full throw I need there. I modified the quicklinks into more permanent linking

The bushes are long enough to give free rotation when the M 2 nuts are fastened. The metal strips are ment to give a better load distribution on the plastic of the servo arm.


I use these locking rings on some important quicklinks of the other rigging, so I get a bit more trust in all those wires!
One advantage of the wiring and floppy wings is the following thing; by adjusting (shorter) the "connecting wire"it is possible to introduce a smaller angle of incidence at the tip, to get better stall charasterics.

To be continued,

Vincent.

[Mad Doc]

Ich hab auch lange nicht reingeschaut, staune um so mehr!! Toll! Super Erstflug-Video!!!!
Holland ist natürlich ein sehr toller Ort um zu schleppen, Ihr habt dort so viel Platz und gerade Flächen... und nebenan direkt eine Wasserflug-Startbahn...
Herrlich!
Liebe grüße,
Christian

[bocorvin]

Hallo Christian,
Ja, die Erstflug war schon!! Doch immer ein bisschen "No guts no glory".
Ich hatte immer geglaubt das in Deutchland mehr Platz um zu fliegen wahre, im Holland ist das sehr schwierig irgendwo platz zu finden, so wir sind ganz froh mit diese Stelle. In eine woche hatten sie die Graben gemacht und dan gab es Wasser! Und mit Wasser ist das genau dasselbe wie mit Baume, die Modellen ziehen dahin .

Liebe grüße,
Vincent

[caralp_laurent]

Salut Vincent,
Un grand bravo ! Il est superbe ton biplan, la silhouette et la transparence waouwww, magnifique !

Lolo

[bocorvin]

Salut Lolo,

Merci beaucoup !
I am also very pleased with the transparancy of the wings, the 140+ "nervures aux baquettes" had their effect!

Vincent

[bocorvin]

Bonjour a tous,

I did some small things, to make the quicklinks less visible I blackened them chemically with Bernax 540 of which I happened to have some.





rinsed them with water.



Then I discovered a problem; on which spot could someone hold the plane when the catapult (sandow) was under tension?
I think the rudders are to weak, the attachment for the horizontal stabilizer is also a bit weak, besides there is no room for one hand. Rigging wires all over the place!
So I made a device, or better said a contraption to hold the glider in place with the catapult under tension, with a release hook.



I used a modified standard release hook connected with a 8mm stainless steel tube attached to a wooden handlebar. A 1mm stainless steel operating wire with a rope loop as a trigger.

On the plane I made also a demountable loop, attached to 0.6 mm steel wire, which was connected to one of the wing struts.



Here Sjoerd demonstrates how it should work (I tested it at home with 15 KG tension and the plane stayed horizontal too)



Today Rob towed the FG 2 again and it performed well.
The CG looks OK, the elevator is just a degree or 2 up, the plane was really flying!

Vincent

[Johannes]

Hi Vincent,
spitze wie Du solche Probleme löst -
super Idee


LG Johannes

[sebastian92]

hello Vincent,
Very interesting your system of trigger of dropping for the plane difficult to block on hands… !!

[bocorvin]

Hello Johannes und Sebastian,

Thanks! Hopefully this thing works properly at Vauville!

Vincent

[fabplane56]

beautifull model , and the work on it is simply awesome ! i wish i had the skill to make a such model stickers voiture

[bocorvin]

Thanks a lot for your comment!
About the skills, its mostly a matter of practice...

Vincent

[Christian]

Je ne me lasse pas de regarder ta vidéo , merci pour les images elles trouveront leur place sur la vidéo

Quel bonheur d'avoir vu voler plusieurs fois ce Fokker sur une des plus belle pente de France ,



















Christian

[DOMINIQUE DIOT]

alors la un très grand bravo c'est du grand art

[bocorvin]

Merci Christian pour les photos. Nous sommes encore en France, j' ai seulement mon telepbone et je ne peux pas voire le video
Vincent.

[bocorvin]

Hello everyone,

Some time ago we went with the FG2 to the Fokkerfair, a yearly event organised (if I am correct) by the Historical Fokker foundation.

Claude (who gives always a tremendous support) and me are building up the FG2, all those small clips . Even the local tv came along



The plane right under construction is Robs Fokker FXX, the only Fokker commercial plane with retractable landing gear. Rob is also the pilot of the Piper, the plane that towed the FG2.
From left to right; the FG, Robs Fokker FXX and Fokker FVIIb/3m, Southern Cross and we are sitting in front; me, Claude, Rob and Adri (from the anemometre)



Last weekend we flew the FG2 again, it went allright, but flying with it on a level field is not a real joy. The steering is OK, but its coming down very fast, there are no (extra) brakes and I don't dare to side slip it, so its difficult (for me) to land. The skid is also very vulnerable with landing. It has already been replaced twice and there was some minor damage inside the fuselage.
In Holland are no suitable hills to fly it, so I think I store it till next Retroplane or maybe another meeting.

Vincent.

[Johannes]

Hallo Vincent,
Glückwunsch zu dem tollen Fokkertreffen
Das Segelflugzeug macht sich gut unter den Motorfliegern

Ja so ein Hang wie in Vauville ist eimalig da fliegt einfach alles.
Seid Retroplane ist das Stehaufchen schon über 20 mal geflogen
un dauch noch alles ganz ich hoffe es bleibt so auch besonders
bei Deiner FG2.
Viel Spaß auch weiterhin

LG Johannes

[Fotor]

Last weekend we had an aerotow meeting in the Netherlands. Vincent brought his Fokker and made some flights. It's still a magnificent sight to see this retro model in the air. The model got a lot of attention.

Some photos:




HD http://www.esveldt.demon.nl/Model/Kampen18-35.jpg





HD http://www.esveldt.demon.nl/Model/Kampen18-36.jpg





HD http://www.esveldt.demon.nl/Model/Kampen18-37.jpg





HD http://www.esveldt.demon.nl/Model/Kampen18-68.jpg





HD http://www.esveldt.demon.nl/Model/Kampen18-69.jpg





HD http://www.esveldt.demon.nl/Model/Kampen18-77.jpg





HD http://www.esveldt.demon.nl/Model/Kampen18-72.jpg

[Christian]

Christian

[Johannes]

Es ist schon was seltenes so einen
schönen Doppeldeckersegler zu sehen

LGJ

[michel]

Michel

[LEROY]

Splendide !!!!!!

Michel.L

[bocorvin]

Thanks a lot Raymond . Its so nice I can focus on the flying and in the meantime you just made all those nice shots!
It was indeed a inspiring meeting and luckily we had very good weather

Vincent

[mAtzi]

Gratulation!

[bocorvin]

Thanks for all those nice comments!
While watching these photo's for another time, I suddenly realised that you can see the wingwarping in action. Normally you can't see it, but on the third photo (from the top) where the FG 2 is on close approach its clear to see, the left wings are giving '"up" and the right wings are "down". (luckily I made the right correction )

Vincent

[DELRIEUPierre]

great success Vincent
Pierre

[Flattersaus]

Guten Tag aus Deutschland,

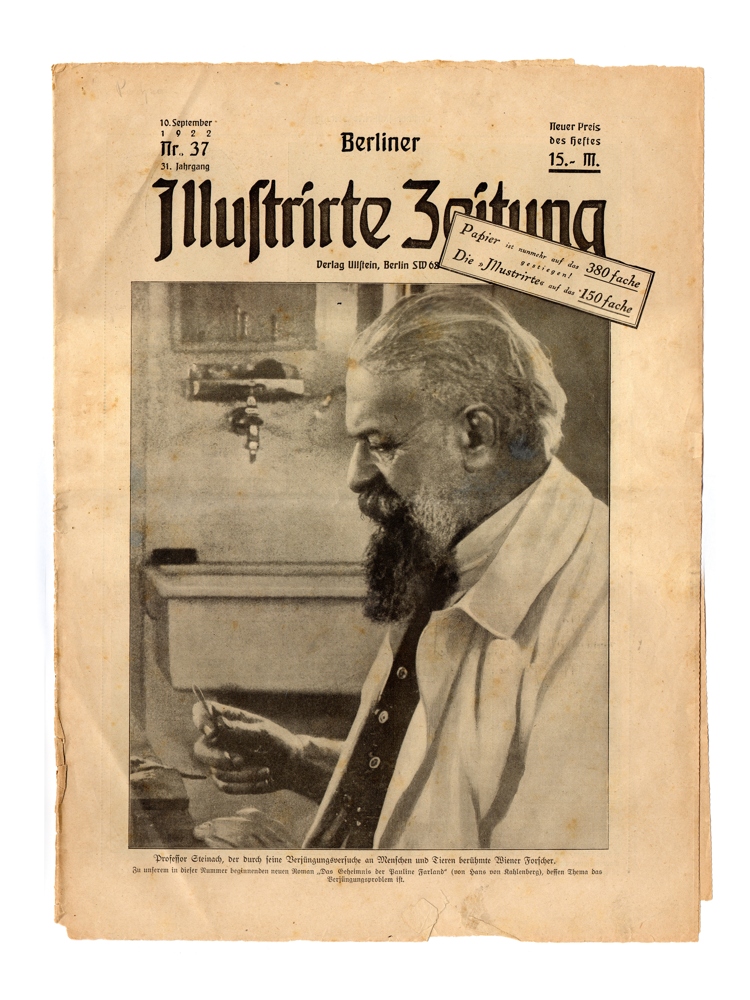

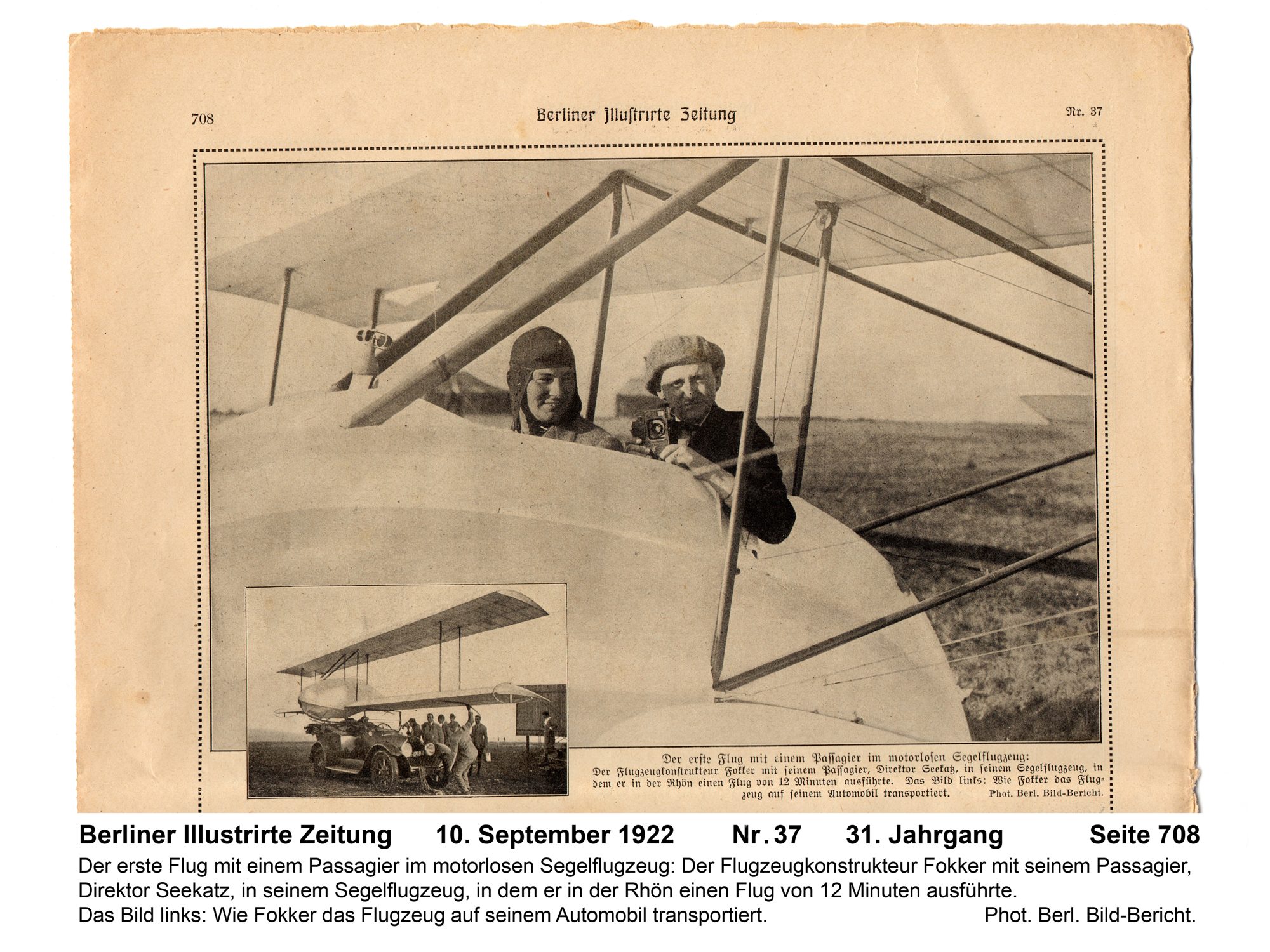

ich möchte ein Artikel aus der Berliner Illustrirten Zeitung als Dokument ergänzen. Viel Spass

[bocorvin]

Hello Ralph,

Danke fur das Artikel aus der Berliner Illustrirten Zeitung!
Das hat mit viel Spass gegeben und Ich sende das gleich nach einige Leuten in Nederland die mit mit die documentation geholfen hatten, klasse!
Leider fliegt der FG-2 diese sommer nicht am Waku, hoffentlich nachstes Jahr.

LG

Vincent (DB)

[bocorvin]

In the (renewed) RCSD is an article about the FG-2.
https://medium.com/rc-soaring-digest

Vincent(DB)
